Toshiba Releases Small Photorelays with 135°C Rating for High-Temperature Equipment Operation

Wednesday 25/02/2026


Table

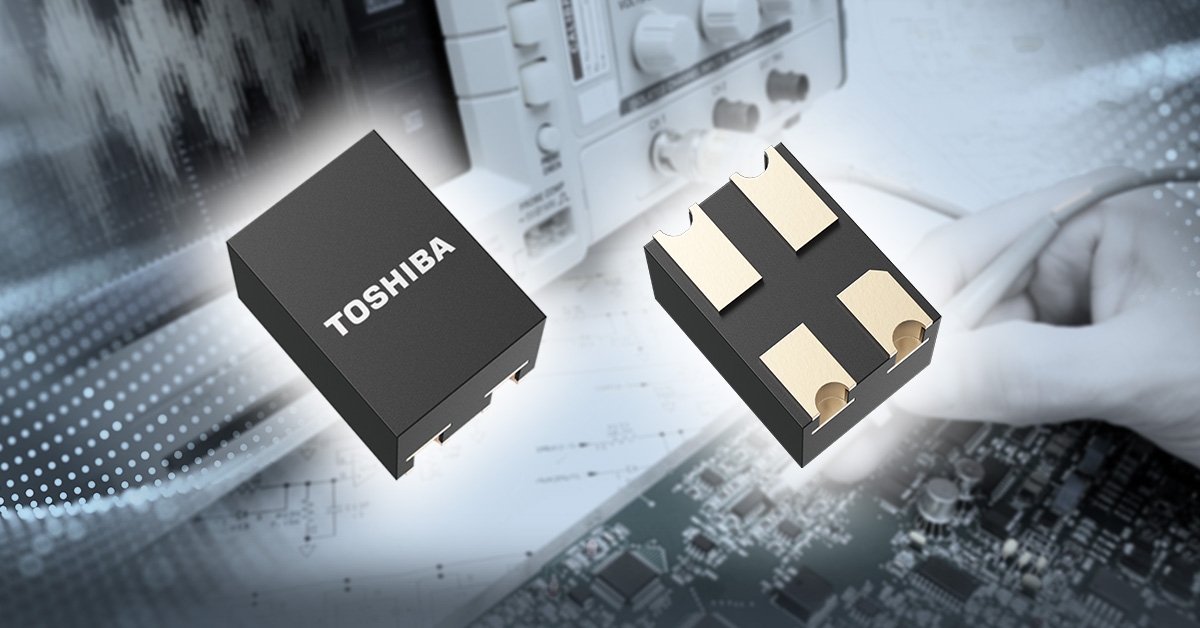

Toshiba: small photorelays with 135°C rating for high-temperature equipment operation.



KAWASAKI, Japan, Feb 25 (Bernama-BUSINESS WIRE) -- Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched four voltage-driven photorelays, “TLP3407SRB,” “TLP3412SRB,“ ”TLP3412SRHB,“ and “TLP3412SRLB” housed in the small S-VSON4T package. The new photorelays deliver a maximum operating temperature rating of 135°C for equipment that operates at high temperatures. Volume shipments start today.

This press release features multimedia. View the full release here:
https://www.businesswire.com/news/home/20260224680610/en/

Advances in electrification and autonomous driving now require high-density packaging of electronic components in automotive equipment. This has raised the temperatures at which automotive semiconductors operate, and testing under similar conditions is necessary to evaluate reliability; testers, burn-in equipment, probe cards, and other devices for automotive semiconductors must be able to operate at high temperatures, as must the photorelays used in them.

The maximum operating temperature of Toshiba’s new products have been pushed from the 125°C of current products[1] to 135°C by optimizing the design of built-in elements. In addition, because they are voltage-driven type photorelays with built-in resistors on the input side, no external resistor is required, reducing space requirements on mounting boards. They are also housed in a small package, the S-VSON4T, which is 1.45 × 2.0 mm (typ.).

The combination of these factors makes the new photorelays suitable for application in automotive semiconductor testers, probe cards, and burn-in equipment, where multiple photorelays need to be mounted within a limited board space, and reliable high-temperature operation is required.

Toshiba will continue to offer a lineup of products that support high-temperature operation in equipment.

Note:
[1] TLP3407SRA, TLP3412SRA, TLP3412SRHA and TLP3412SRLA

Applications
  • Semiconductor testers used to evaluate memories, SoC, LSI, etc.
  • Probe cards
  • Burn-in equipment

Features
  • Operating temperature rating: 135°C
  • Small package: S-VSON4T (1.45mm×2.0mm (typ.))

Main Specifications
(Unless otherwise specified, Ta=25°C)
 TLP3407SRBTLP3412SRBTLP3412SRHBTLP3412SRLB
PackageNameS-VSON4T
Size (mm)1.45×2.0 (typ.), t=1.4 (max)
Contact1-Form-A
(Normally opened)
Absolute
maximum
ratings		Operating temperature Topr (°C)-40 to 135
OFF-state output terminal voltage VOFF (V)60606060
ON-state current ION (A)10.40.40.4
ON-state current (pulsed) IONP (A)31.21.21.2
Recommended
operating
conditions		Applied input forward voltage VIN (V)Typ.3.33.351.8
Max665.53.3
Coupled electrical
characteristics		Limited LED current ILIM(LED) (mA)VIN=5.5V,
Ta=135°C		Max--2-
VIN=3.3V,
Ta=135°C		Max12--
VIN=1.8V,
Ta=135°C		Max---10
Operating voltage VFON (V)ION=100mAMax333.91.6
ON-state resistance RON (Ω)Max0.31.51.51.5
Electrical
characteristics		Output capacitance COFF (pF)V=0V,
f=1MHz,
t<1s		Max150202020
OFF-state current IOFF (nA)VOFF=50VMax1111
Switching
characteristics		Turn-on time tON (ms)RL=200Ω,
VDD=20V,
VIN=5.0V		Max--1.5-
RL=200Ω,
VDD=20V,
VIN=3.3V		Max101-0.1
RL=200Ω,
VDD=20V,
VIN=1.8V		Max---0.3
Turn-off time tOFF (ms)RL=200Ω,
VDD=20V,
VIN=5.0V		Max--0.5-
RL=200Ω,
VDD=20V,
VIN=3.3V		Max10.5-0.225
RL=200Ω,
VDD=20V,
VIN=1.8V		Max---0.15
Isolation
characteristics		Isolation voltage BVS (Vrms)AC, 60sMin500500500500
Sample check & availabilityBuy OnlineBuy OnlineBuy OnlineBuy Online

Related Information

Technical Articles
Small photorelay with high-speed switching
Compact photorelays with low voltage drive and high temperature operation rating

Follow the links below for more on the new products.
TLP3407SRB
TLP3412SRB
TLP3412SRHB
TLP3412SRLB

Follow the link below for more on Toshiba’s isolators and solid state relays.
Isolators/Solid State Relays

To check availability of the new products at online distributors, visit:
TLP3407SRB
Buy Online
TLP3412SRB
Buy Online
TLP3412SRHB
Buy Online
TLP3412SRLB
Buy Online

* Company names, product names, and service names may be trademarks of their respective companies.
* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
